Elevation of Ex ENEL Building
Milan, Italy
2012
Structure over existing roof

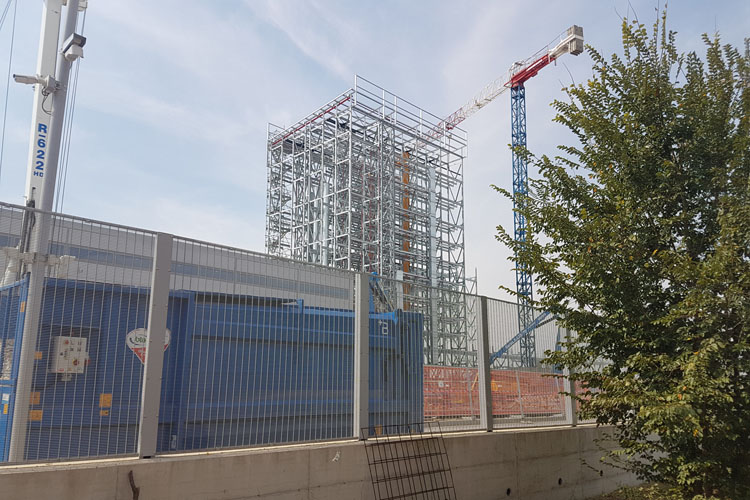

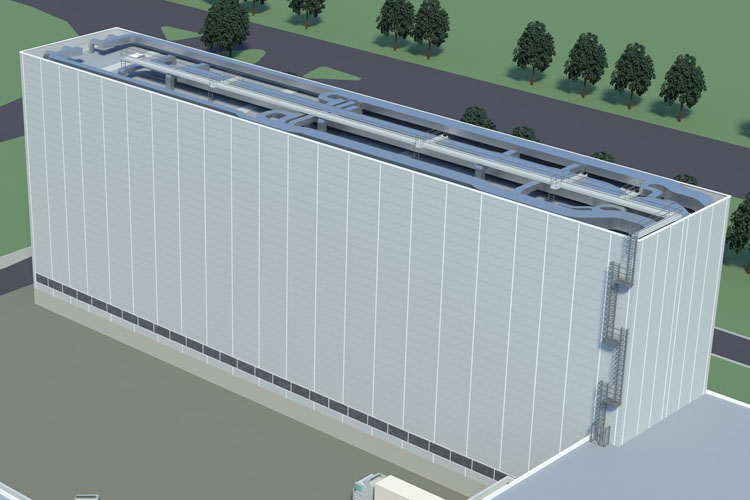

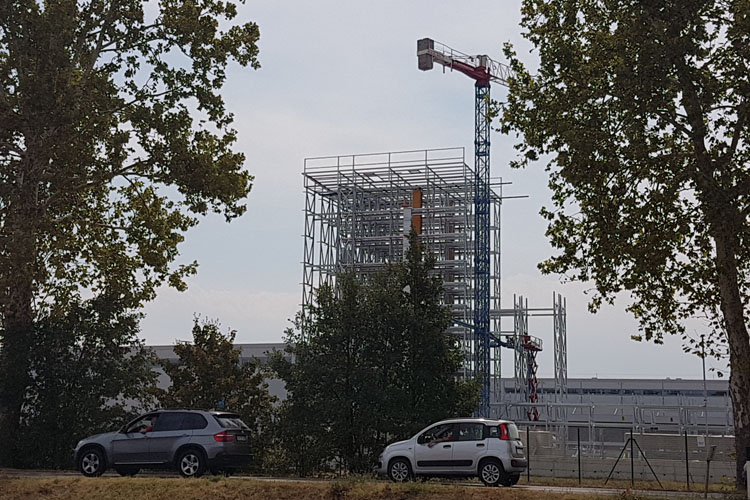

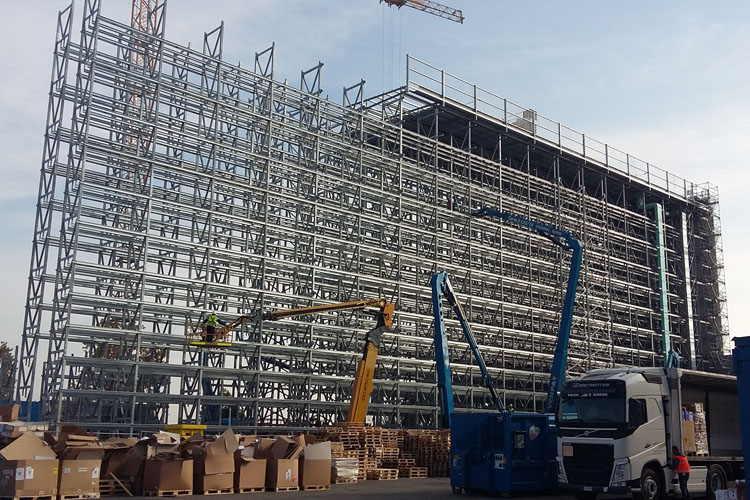

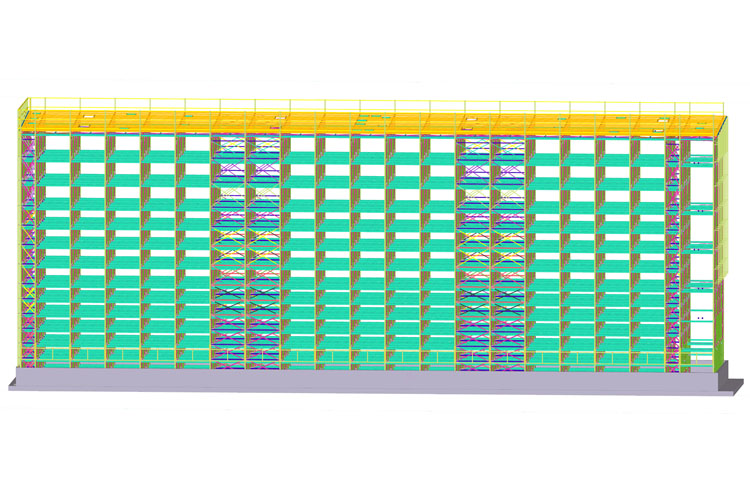

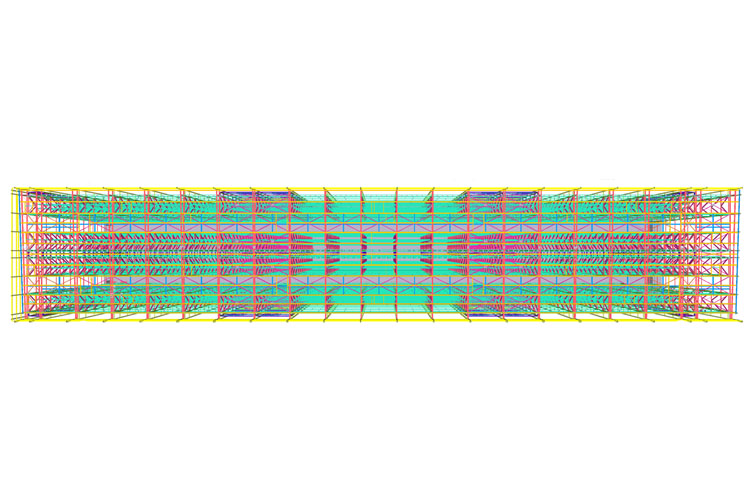

Self-supporting Storage Warehouse
Bologna, Italy
2017

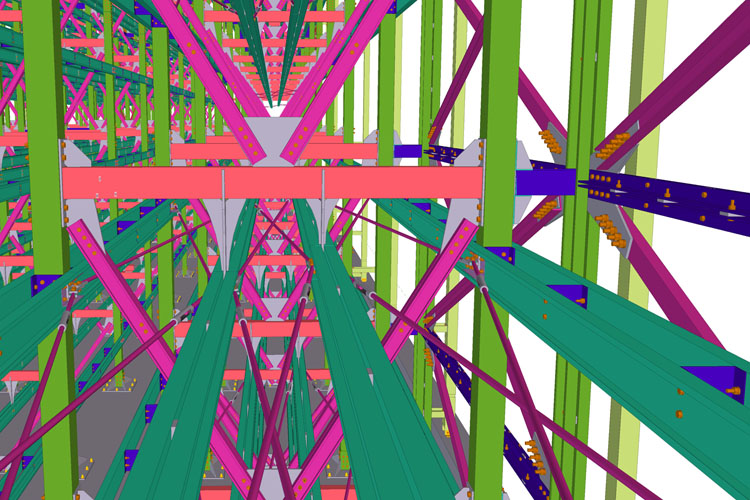

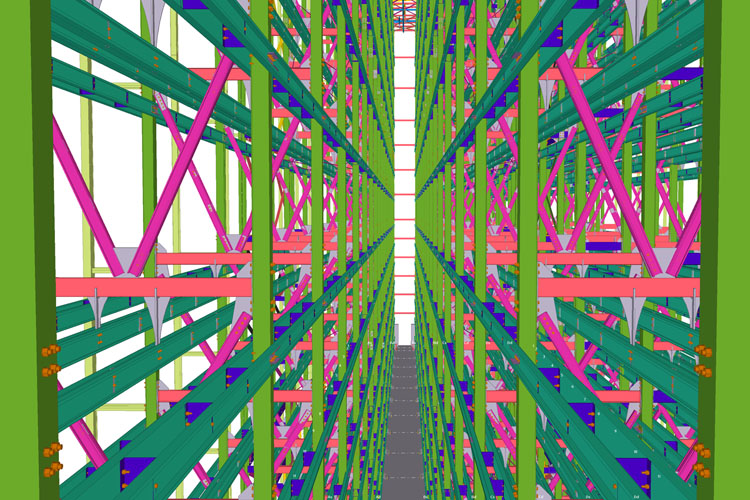

Self-supporting racks with split levels for pallet storage. 1300 m2 covered area for 33 meters height. 18 bays, 4 racks with 2 aisle in between, 13 levels.

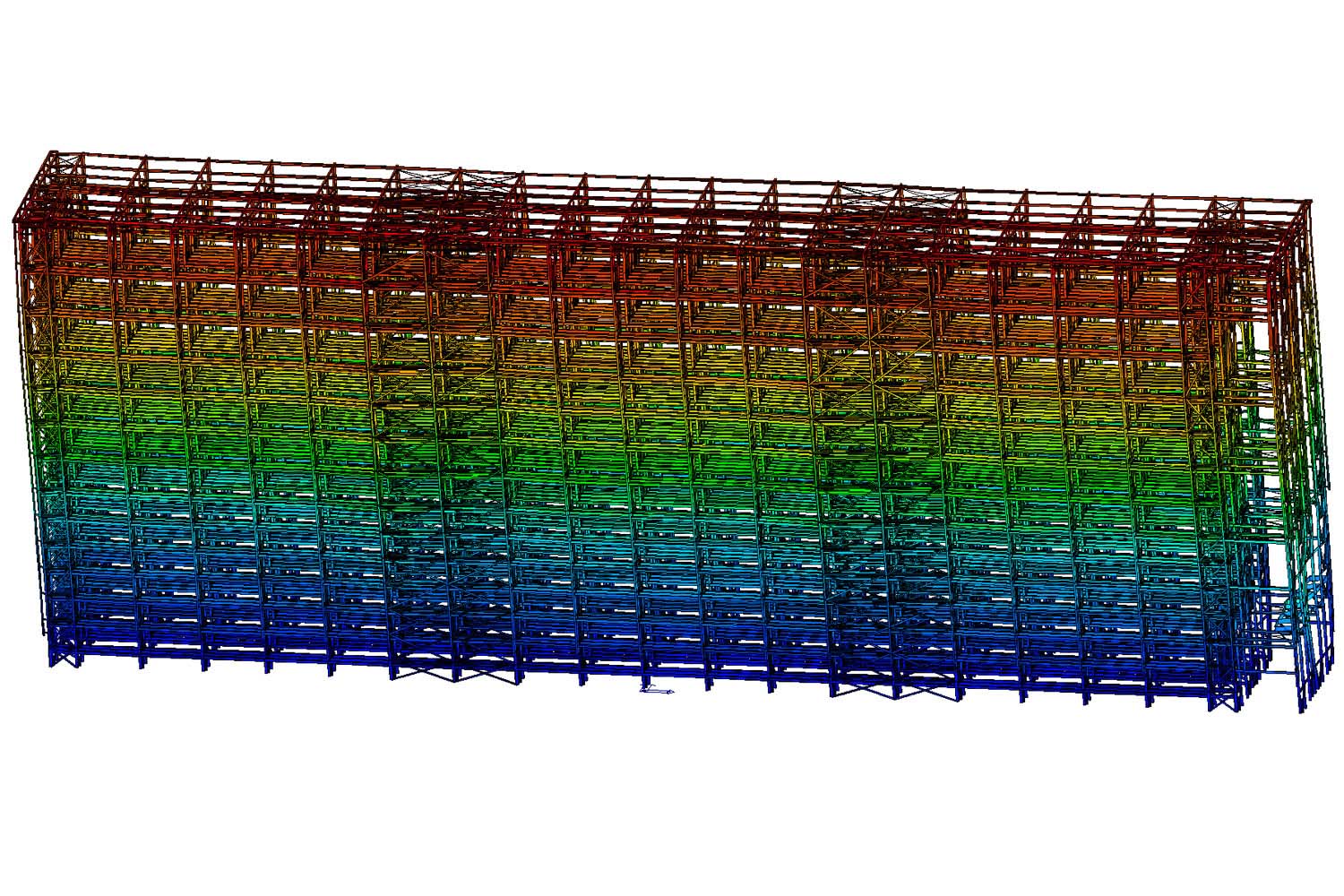

- FEM made of 13000 nodes and 26000 beams

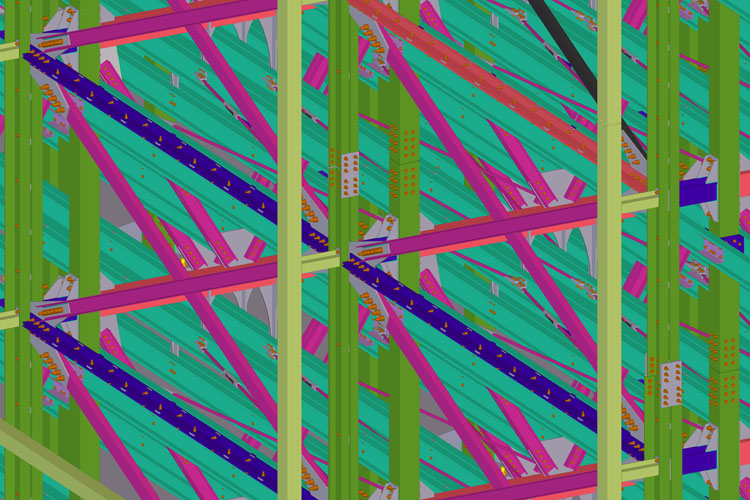

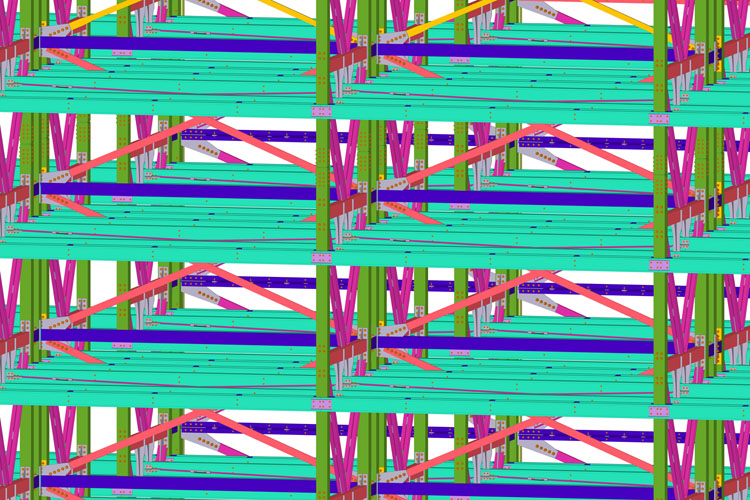

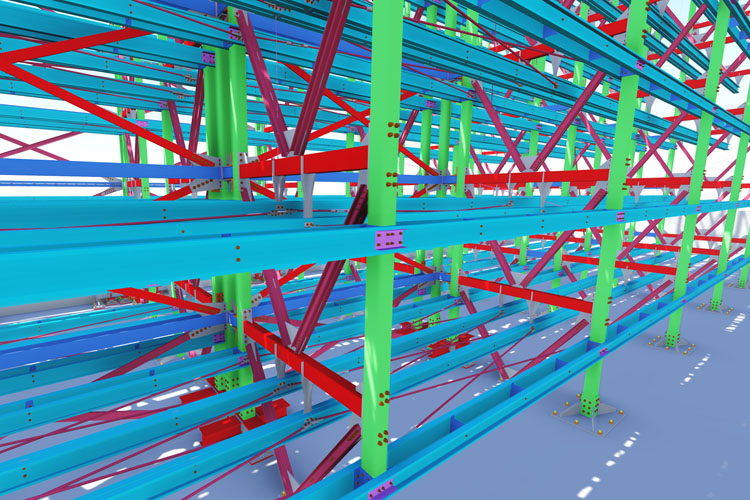

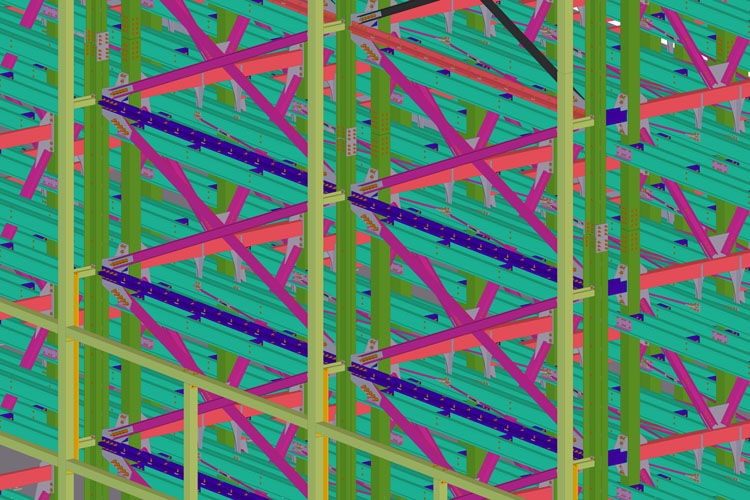

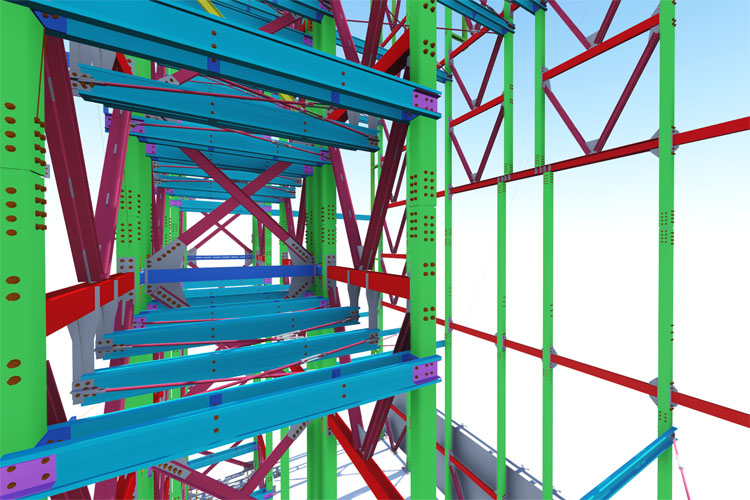

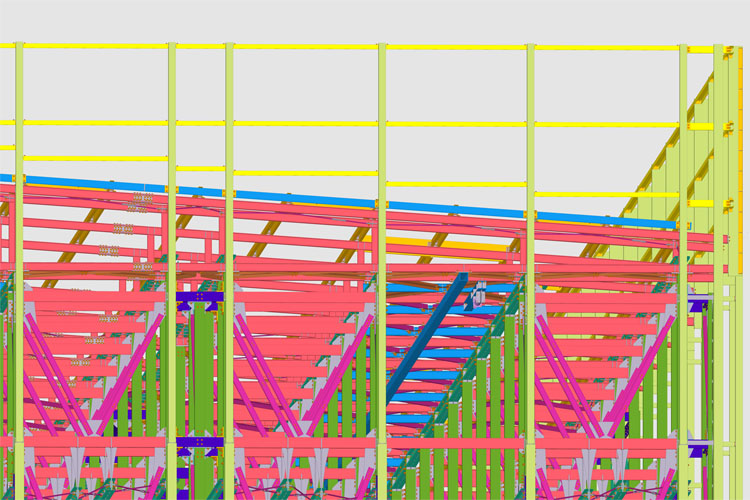

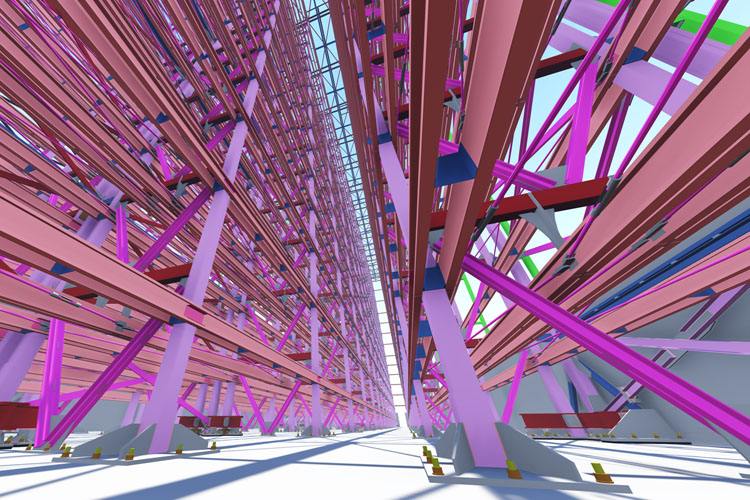

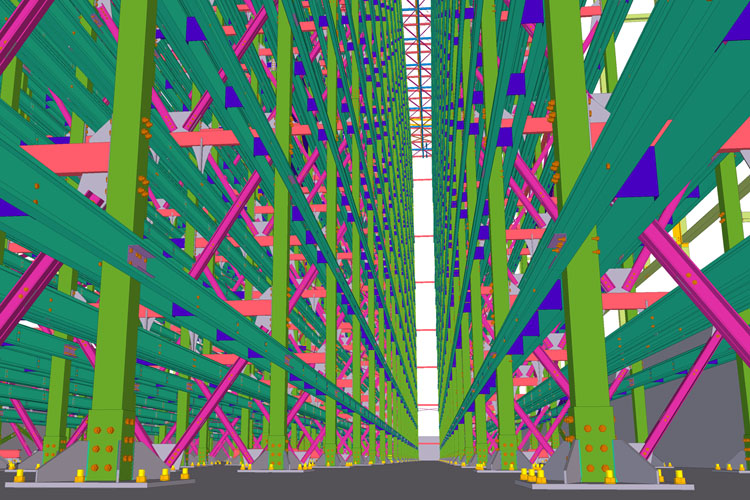

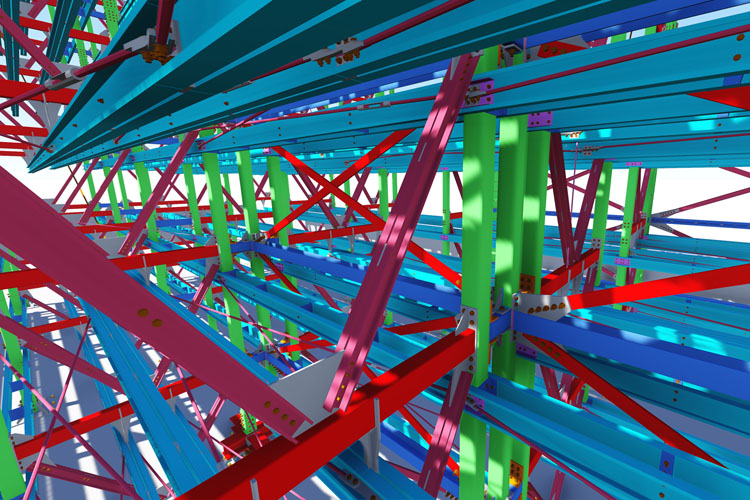

- 3D BIM LOD 500 for 52k elements, 65k steel plates, 200k bolts and 25k welding beads

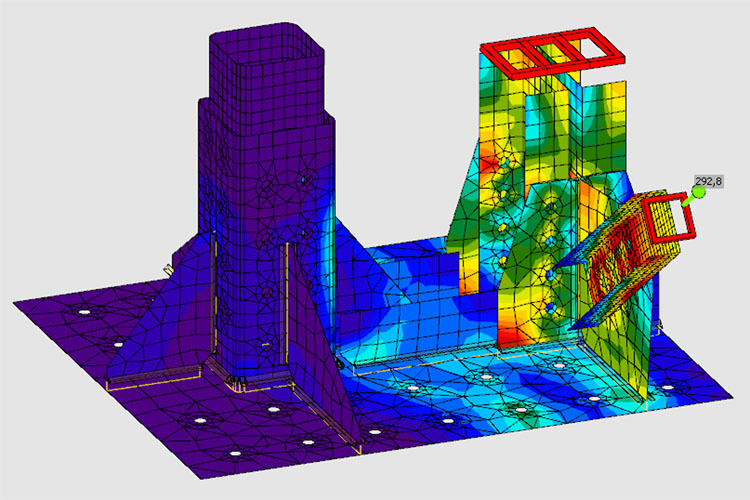

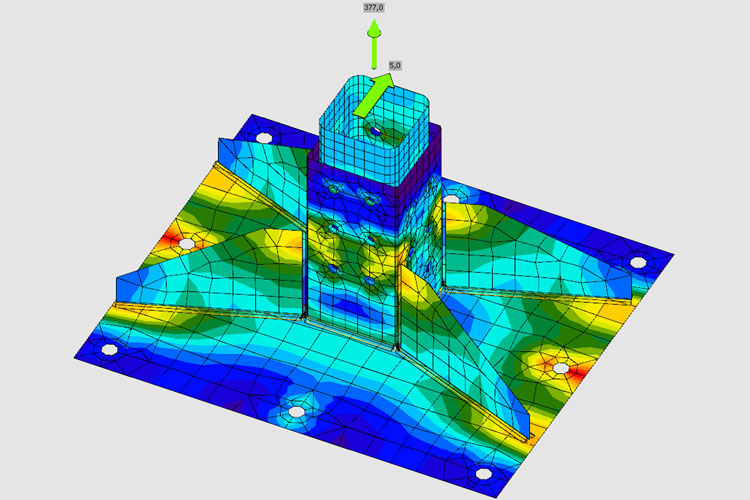

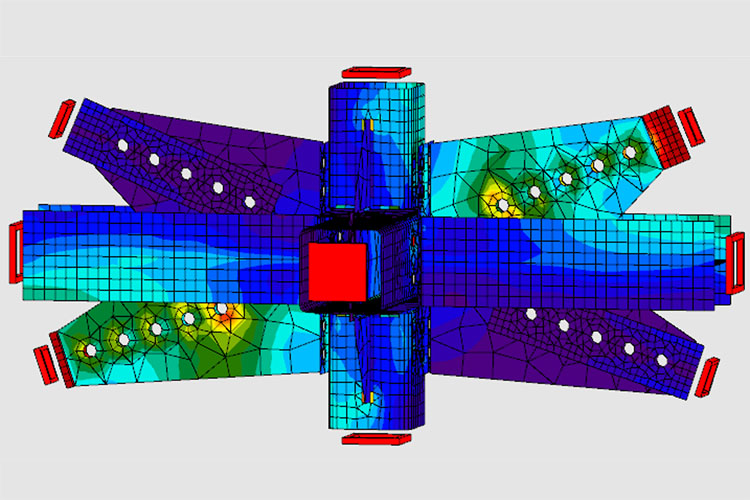

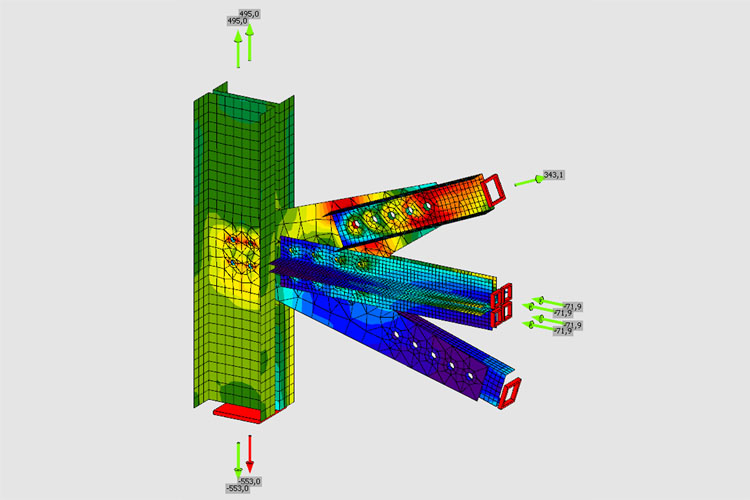

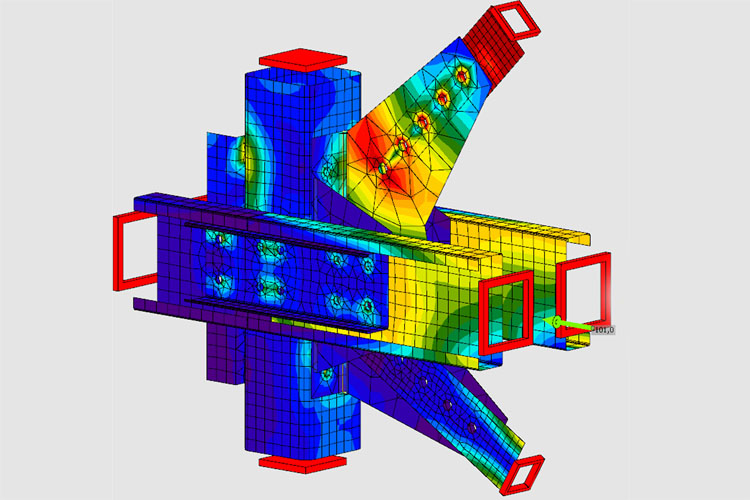

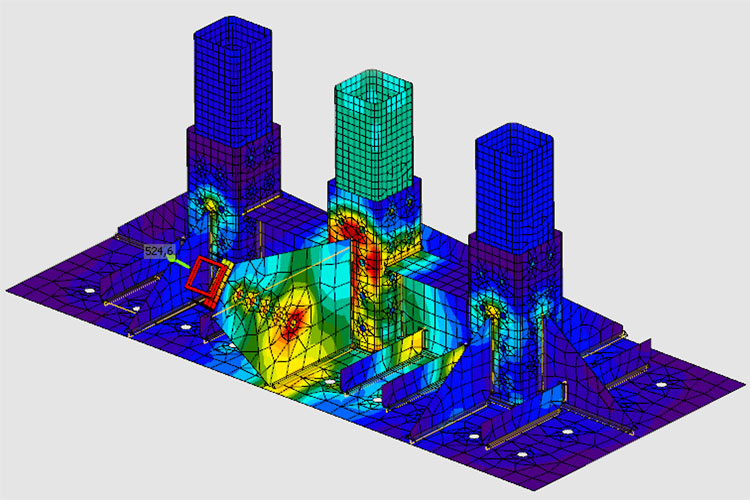

- Analysis of stress, strain, stability and code checks with finite element analysis of all the structural steel nodes
- 2200 workshop and assembly drawings, 30 general assembly drawings
